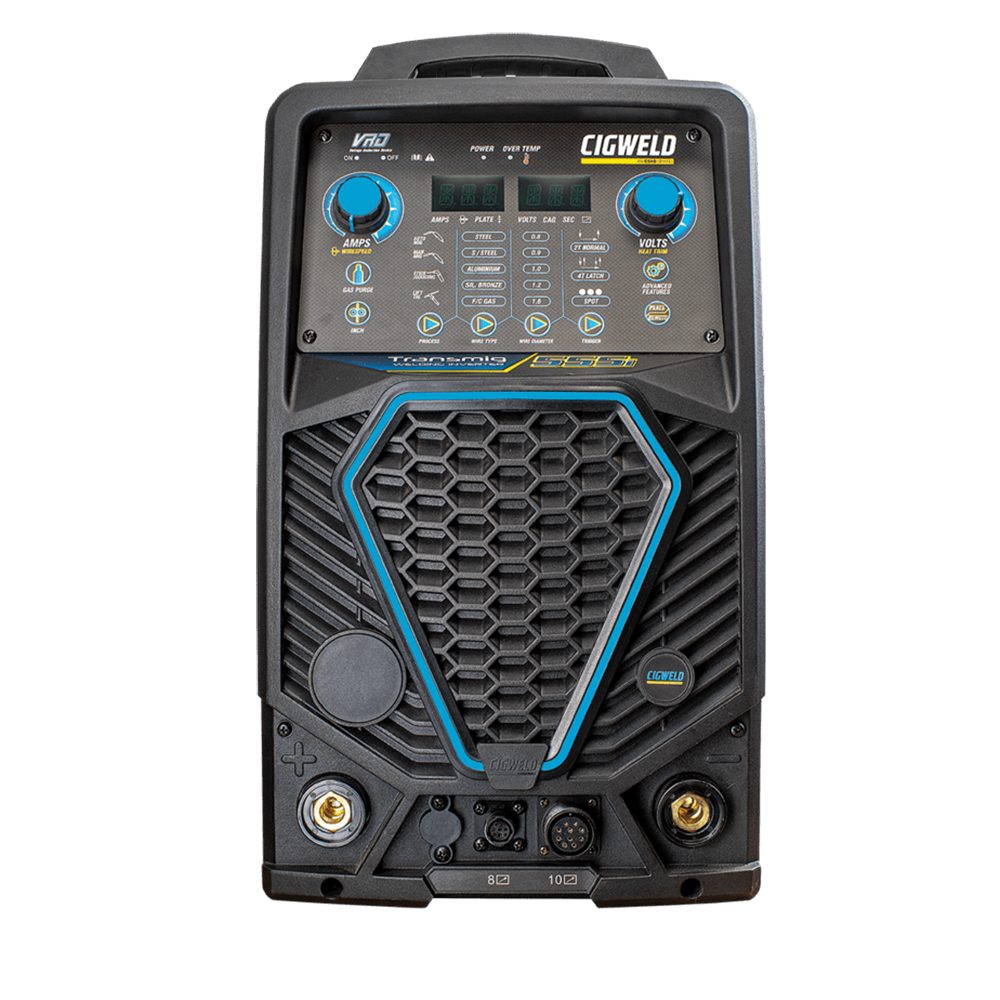

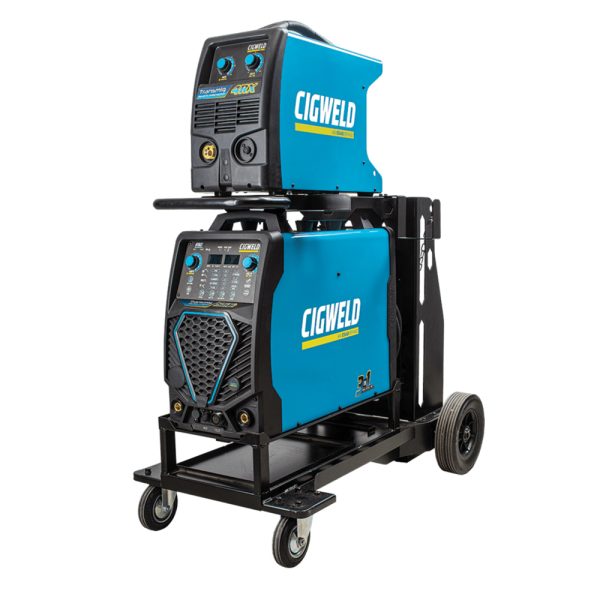

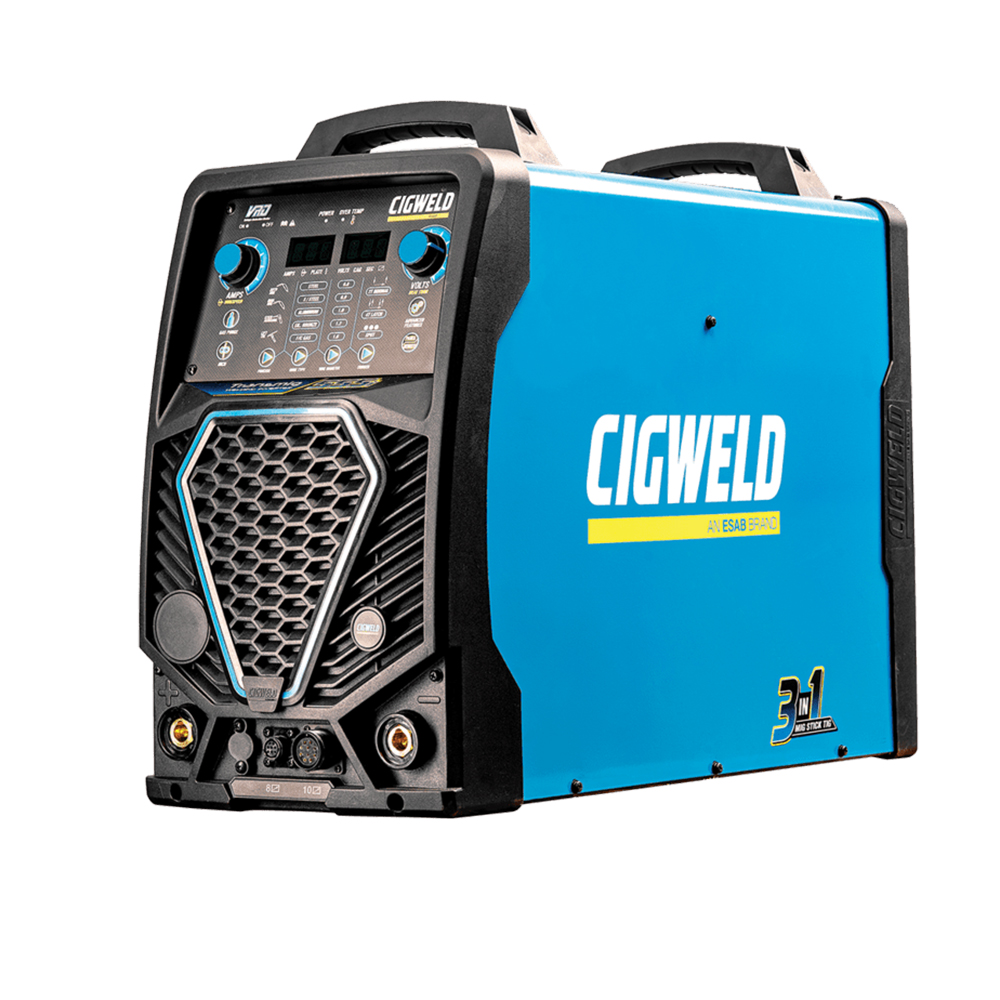

Meet the new CIGWELD TRANSMIG 555i Multi Process Heavy Duty Welding package!
Boasting a powerful 555 amp inverter block, this 3-phase beast packs serious arc punch for heavy metal applications! Loaded with advanced features across MIG, STICK, TIG and GOUGING processes, the TRANSMIG 555i has a rated duty cycle of 555A @ 40% and 500A @ 60%.
Oh, and did we mention it’s incredibly energy efficient? The 555i complies with the European Union ECO-Power regulations, so not only do you get more output amperage for your buck, but you pay less to run this 555i machine compared to a lot of other older machines. Power-Up and Pay-LessTM CIGWELD’s AUTO-SET advanced feature helps you get the best out of your welding performance. With pre-programmed synergic lines, by simply selecting the material type, consumable diameter and plate thickness will give you the right parameters to get your welds done right!
The Transmig 555i has been designed to be durable and rugged to suit the most demanding of environments across heavy fabrication, mining, oil and gas, civil construction, ship building and defence, structural steel set-ups and repair and maintenance.
Packed with everything we could fit in the unit.
Cooling
Fan Cooled
Welder Type
Multi Process Inverter Power Source
Australian Standard
AS 60974.1-2020 / IEC60974-1 / EN60974-10
Number of Phases
3
Nominal Supply Voltage
415 VAC ± 15%
Nominal Supply Frequency
50 / 60Hz
Output Terminal Type
DinseTM Style 50
Protection Class
IP23S
Welding Environment Classification
Suitable for Welding in Category C Environments; Suitable for Indoor and Outdoor Welding
Open Circuit Voltage (VRD On)
<35 V DC
Open Circuit Voltage (VRD Off)
83 V DC
Welding Current Range (MIG Mode)
30 – 555 A
Welding Current Range (GOUGING / STICK Mode)
10 – 555 A
Welding Current Range (TIG Mode)
10 – 555 A
Supply Lead
4 mm²
Effective Input Current (I1eff)
27 Amps
Maximum Input Current (I1max)
41 Amps
Efficiency
92%
Idle state power
< 30W
Minimum Three Phase Generator Recommendation
35 kVA (at 0.8 Power Factor)
MIG (GMAW) Welding Output, 40ºC, 10 min
555 A @ 40%, 41.8 V
500 A @ 60%, 39 V
400 A @ 100%, 34 V
STICK (MMAW) / GOUGING Welding Output, 40ºC, 10 min.
555 A @ 40%, 42.2 V
500 A @ 60%, 40 V
400 A @ 100%, 36 V
TIG (GTAW) Welding Output, 40ºC, 10 min.
555 A @ 40%, 32.2 V
500 A @ 60%, 30 V
400 A @ 100%, 26 V
