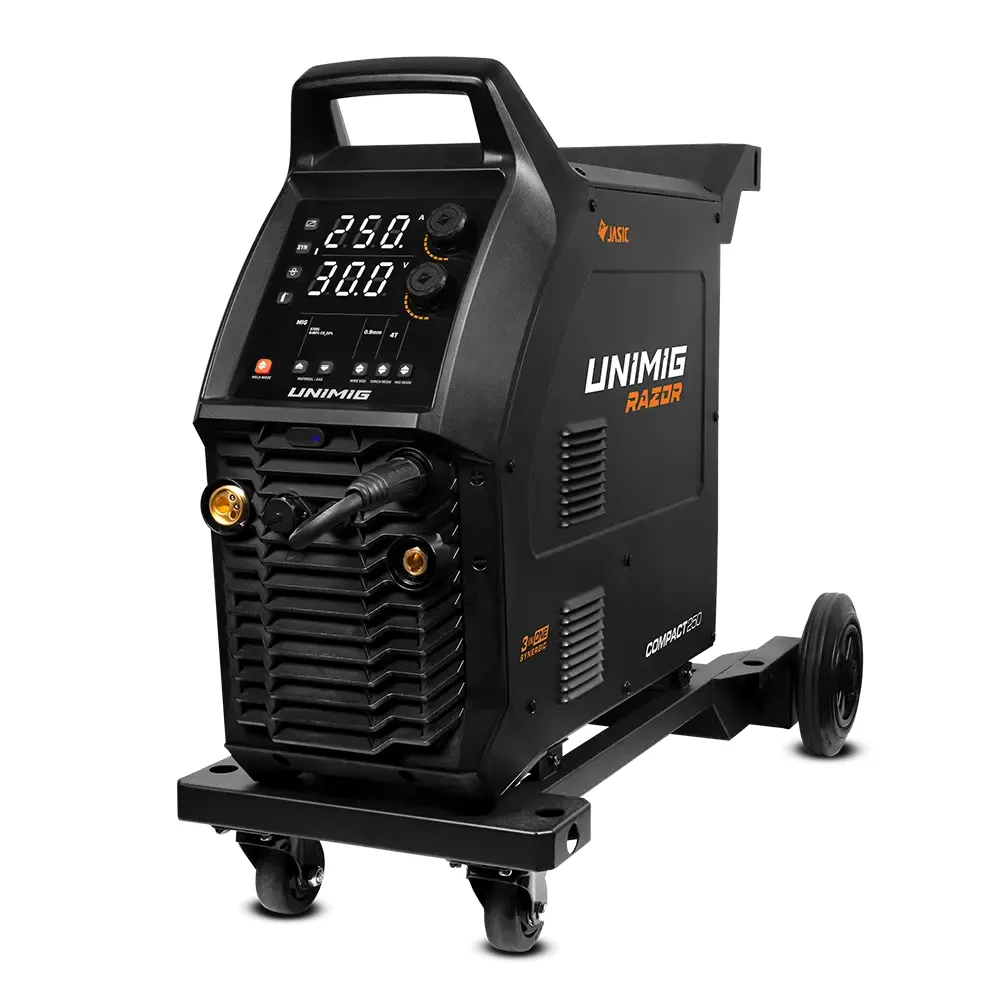

Razor 200 Pulse Mig

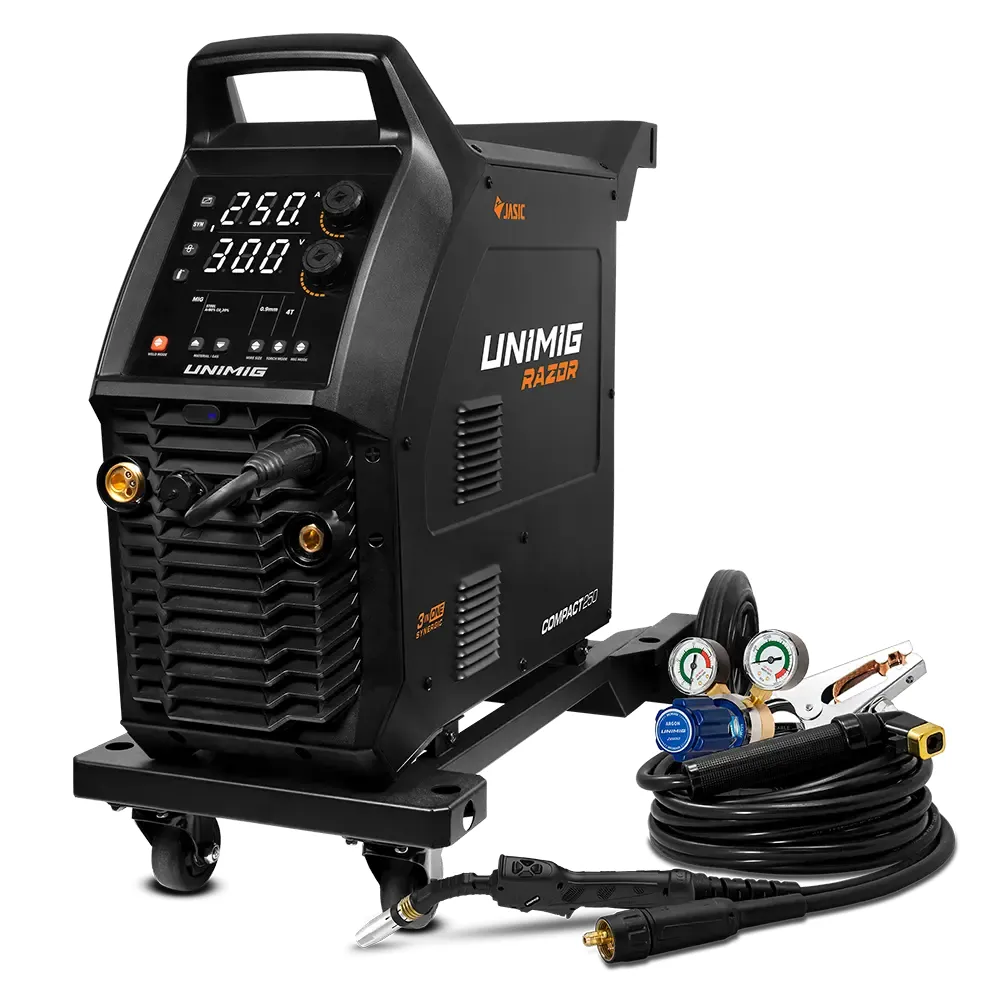

Razor 200 Pulse Mig - Image 2

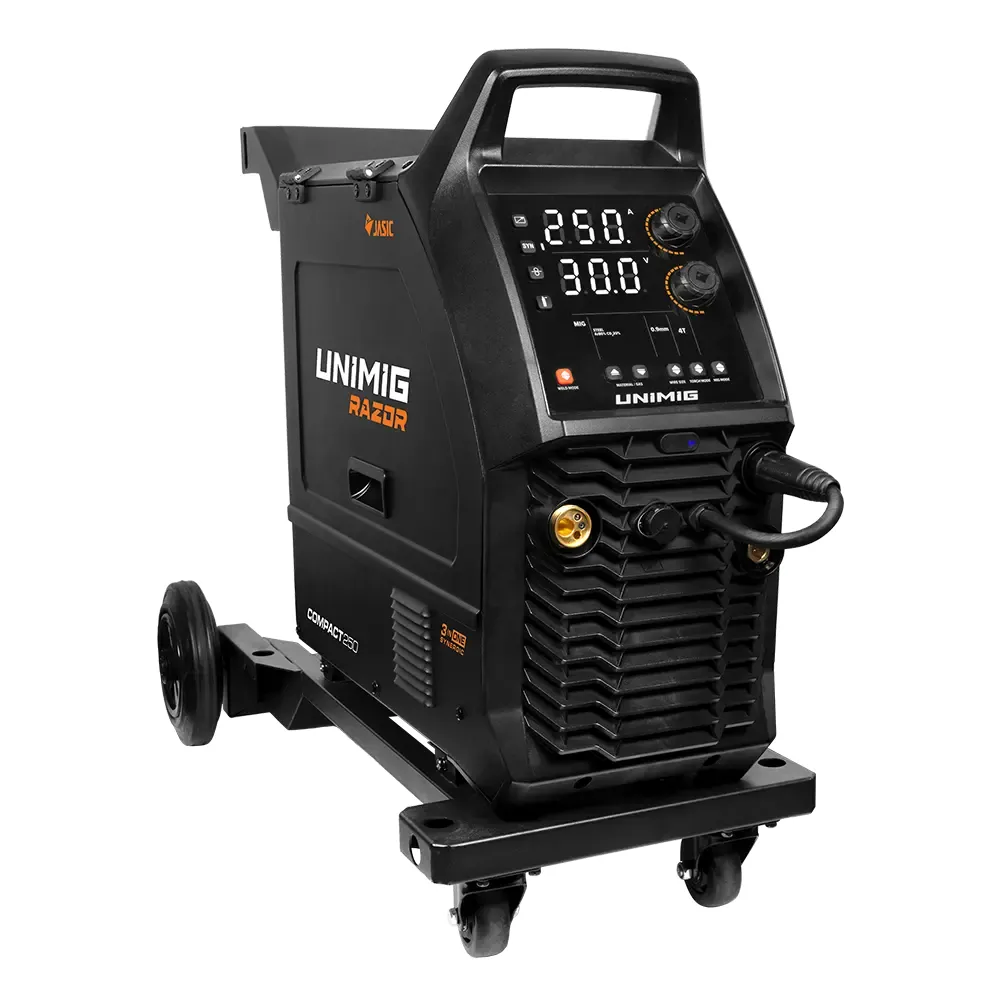

Razor 200 Pulse Mig - Image 3

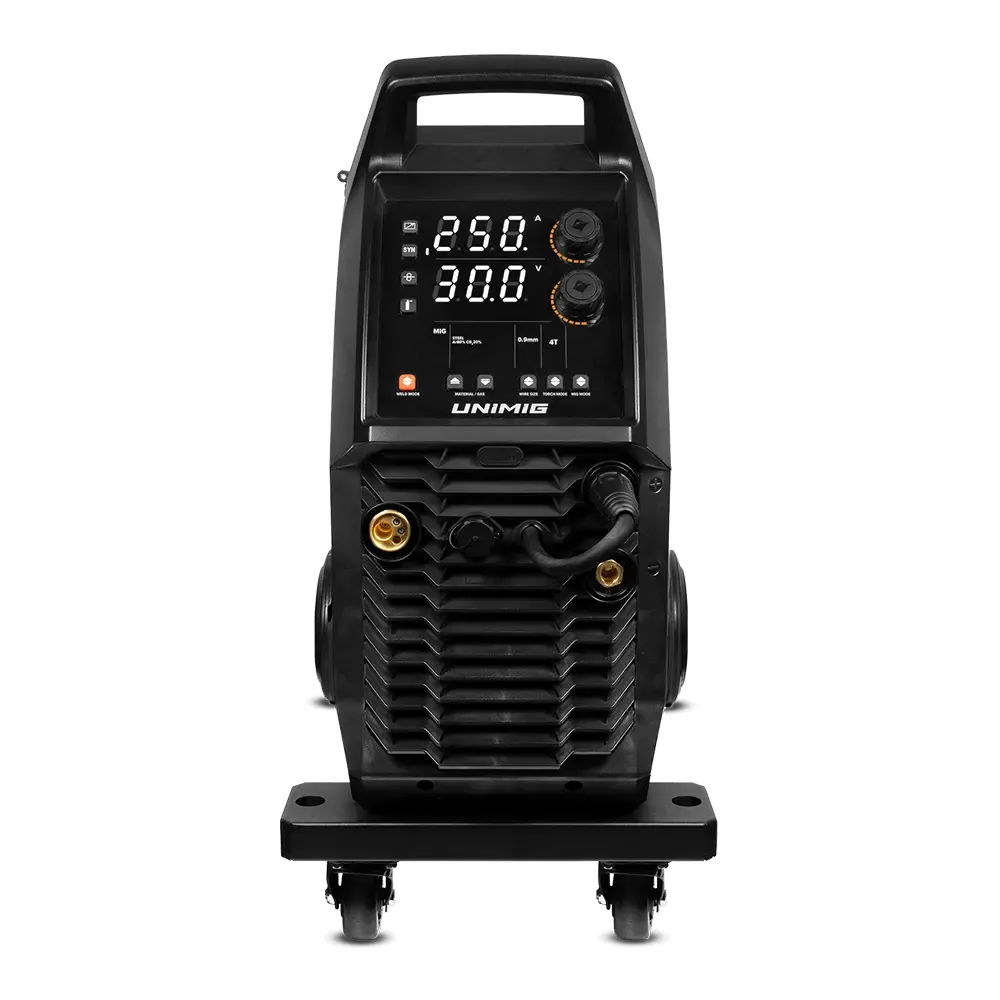

Razor 200 Pulse Mig - Image 4

Razor 200 Pulse Mig

Get superior performance even in the toughest conditions with the professional machine in a compact case.

SKU U11010K Categories , Brand:

RAZOR COMPACT 250 Welder provides superior, professional welding performance in a compact case.

Primary Input Voltage240V Single-Phase
Supply Plug15A
Ieff (A)15.0
Open Circuit Voltage (OCV)70.0
Open Circuit Voltage with VRD Active (V)11.0
Protection ClassIP23S
Insulation ClassH
Minimum Generator (kVA)11.0
Dinse Connector35/50
StandardAS 60974.1
Weight (kg)41.30
Dimensions (LxWxH)900 x 480 x 760mm,
Suitable MaterialsMIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze, MMA: Mild Steel, Stainless Steel, Cast Iron, TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
MIG Current Range30-250A
MIG Duty Cycle @ 40°C20% @ 250A, 60% @ 144A, 100% @ 112A
MIG Wire Sizes0.6-1.2mm
MIG Wire Spool Sizes5kg (D200), 15kg (D300),
MIG Welding Thickness Range1-12mm
Drive Roller Size30/22
TIG Ignition TypeDC Lift Arc,
TIG Current Range5-250A
TIG Duty Cycle @ 40°C20% @ 250A, 60% @ 144A, 100% @ 112A
TIG Welding Thickness Range1-10mm
MMA Current Range20-220A
MMA Duty Cycle @ 40°C20% @ 220A, 60% @ 127A, 100% @ 98A
MMA Electrode Range2.5-4.0mm
MMA Welding Thickness Range2-12mm

- Quick and easy setup with Smart Set MIG programs
- Spool gun and Push-Pull gun compatible for the best aluminium welds
- 4 geared wire drive system for the smoothest wire feeding experience
- A 5-year warranty to reflect our confidence in this machine

MIG Current Range30-250A
MIG Duty Cycle @ 40°C60% @ 144A / 100% @ 112A
MIG Wire Sizes0.6-1.2mm
MIG Wire Spool Sizes5kg (D200) / 15kg (D300)
MIG Welding Thickness Range1-12mm
Drive Roller Size30/22
TIG Ignition TypeDC Lift Arc
TIG Current Range5-250A
TIG Duty Cycle @ 40°C60% @ 144A / 100% @ 112A
TIG Welding Thickness Range1-10mm

Additional information

Weight 41.3 kg
Dimensions 90 × 48 × 76 cm
