This professional MMA welder is designed to be taken on the worksite or the workshop with its powerful performance in a portable case.

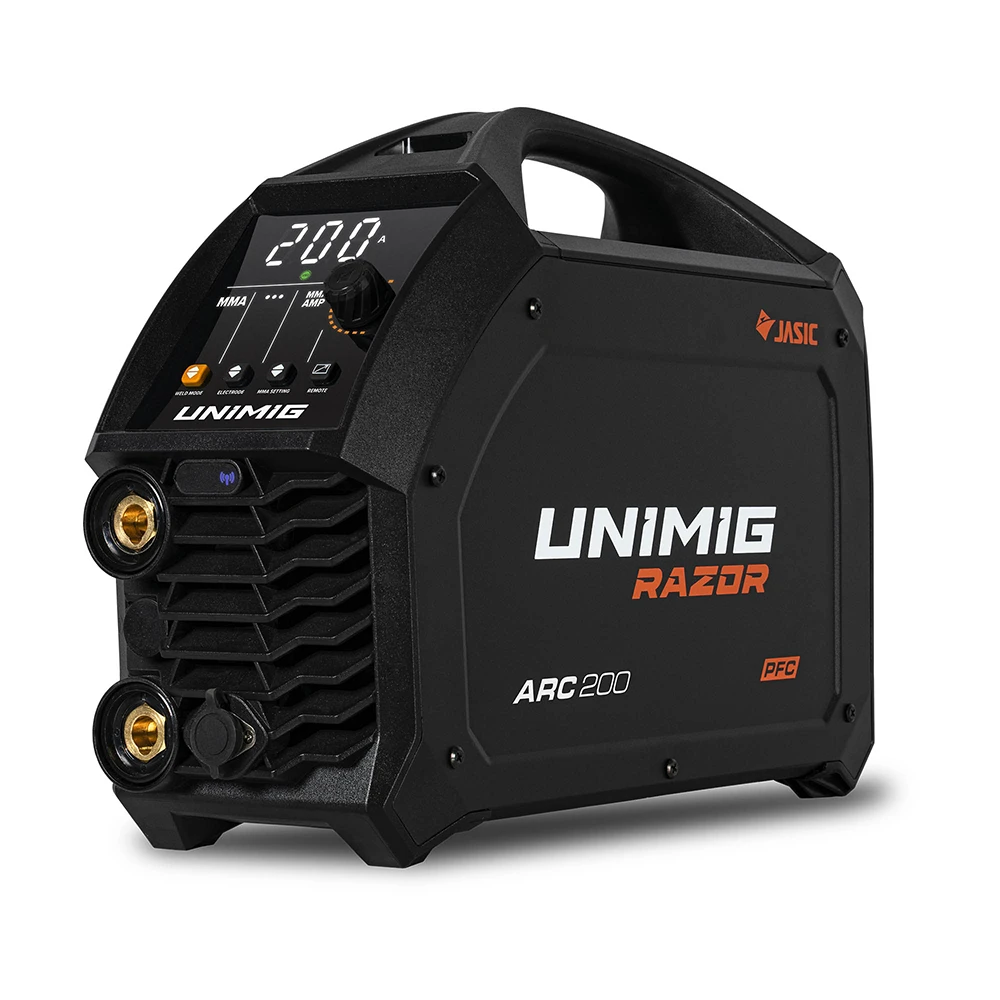

The RAZOR ARC 200 PFC Welder is a portable MMA welder with powerful performance for both worksites and workshops.
This professional MMA welder is designed to be taken on the worksite or the workshop with its powerful performance in a portable case.
Packed full of advanced features including hot start, arc force and anti-stick
PFC gives you maximum electrical efficiency
Capable of DC Lift Arc TIG for more versatility
A 5-year warranty to reflect our confidence in this machine
| Primary Input Voltage | 240V Single-Phase |
|---|---|
| Supply Plug | 15A |
| Ieff (A) | 14.9 |
| Imax (A) | 29.7 |
| Open Circuit Voltage (OCV) | 78.0 |
| Open Circuit Voltage with VRD Active (V) | 11.0 |
| Protection Class | IP23S |
| Insulation Class | H |
| Minimum Generator (kVA) | 9.0 |
| Dinse Connector | 35/50 |
| Standard | AS 60974.1 |
| Warranty | 5 Years |
| Weight (kg) | 7.60 |
|---|---|
| Dimensions (LxWxH) | 413 x 150 x 311mm |
| Suitable Materials | MMA: Mild Steel, Stainless Steel, Cast Iron, TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze |
| MMA Current Range | 20-200A |
| MMA Duty Cycle @ 40°C | 25% @ 200A, 60% @ 129A, 100% @ 100A |
| MMA Electrode Range | 2.5-4.0mm |
| MMA Welding Thickness Range | 2-12mm |
| TIG Ignition Type | DC Lift Arc, |
| TIG Current Range | 10-200A |
| TIG Duty Cycle @ 40°C | 35% @ 200A, 60% @ 152A, 100% @ 118A |
| TIG Welding Thickness Range | 1-8mm |
| Weight | 7.60 kg |
|---|---|
| Dimensions | 413 × 150 × 311 cm |
